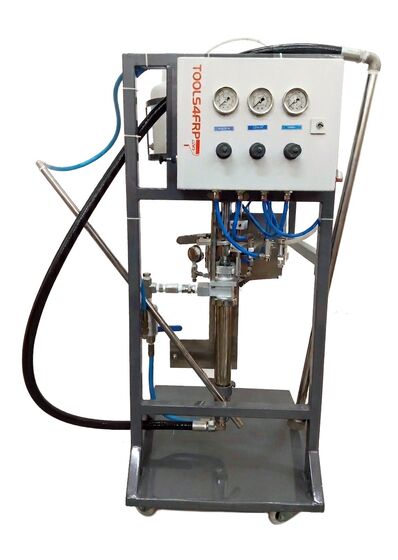

MMD PS102

MMD PS102 is a precision Metering-Mixing-Dispensing System engineered for seamless handling of Polyester and Vinyl Ester resins. Featuring an 11:01 resin pump ratio, the unit delivers outputs up to 8 kg/min (180 cc per stroke) with air requirements of 15 cfm @ 100 psi (7 bar). Its positive feed slave pump allows tool-free catalyst adjustments between 1% and 3% by volume, featuring a precise 0.25% least count.

Built for maximum operational efficiency and minimal material waste, the system incorporates complete independent recirculation—cycling unmixed resin and catalyst from the dispense head back to reservoirs to keep material lines de-gassed and prevent fillers from settling. Complete with an integrated stroke counter, the MMD PS102 provides consistent, reliable performance for high-demand composite manufacturing.

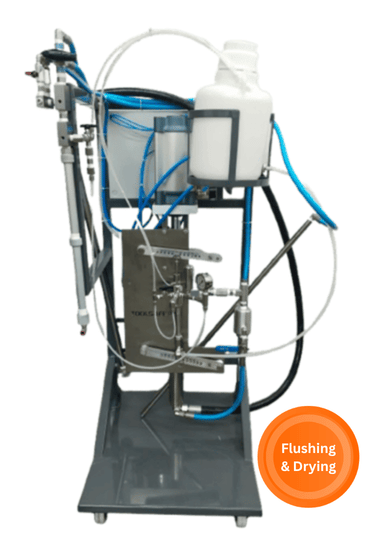

MMD PS110

MMD PS110 Metering-Mixing-Dispensing System is a semi-automated, economical solution designed for precise and efficient use of resin and catalyst in high-volume composite production. Compatible with polyester and vinyl ester resins, the system delivers up to 8 kg/min with an 11:01 resin pump ratio and adjustable catalyst dosing from 1% to 3%, enabling consistent material output and process control. Independent resin and catalyst recirculation keeps material lines de-gassed, minimizes wastage, and helps prevent filler settling, while the positive-feed slave catalyst pump allows quick, tool-free adjustment of catalyst percentage. The system also features stroke counting, an independent adjustable solvent flush, and separate air flush and drying controls for fast and effective cleaning of the dispense head. Equipped with a Roberto dispense head with static mixer, MMD PS110 combines reliable metering, controlled mixing, easy maintenance, and efficient operation, making it an ideal choice for large factories and demanding production environments.

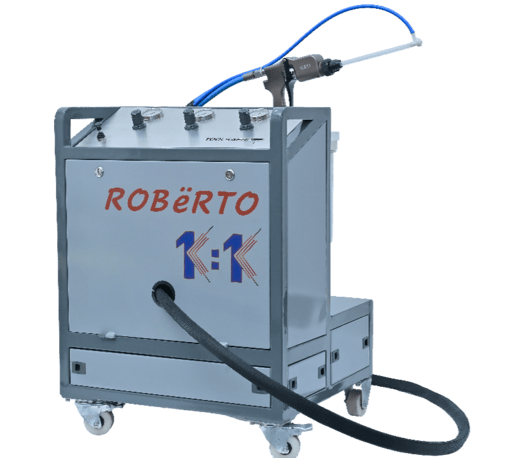

MMD SB220

Precision Metering. Consistent Mixing. Reliable Dispensing.

MMD SB220 is a compact and reliable Metering-Mixing-Dispensing system designed for precise proportioning, homogeneous mixing, and controlled delivery of two-component materials at a fixed 1:1 ratio.

Paired with the versatile GX 11 modular dispensing gun, the system supports a range of applications including spraying, bead dispensing, gap filling, and low-pressure injection. Its positive-displacement metering, static mixing technology, and pneumatic operation ensure consistent material delivery and dependable performance.

With its compact, mobile design and robust stainless-steel material containers, the MMD SB220 offers an ideal balance of precision, flexibility, and efficiency for demanding industrial applications.
