TS 710

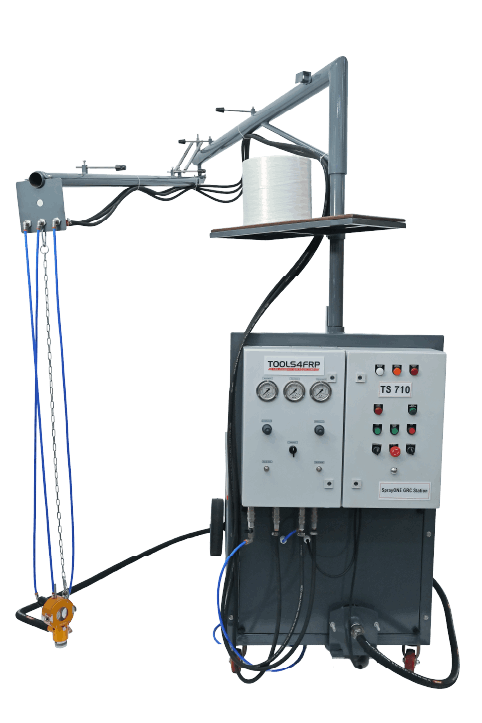

SprayONE GRC Station – TS 710
PUMP SPECIFICATIONS
Pump Type
Speed Range
Slurry Output
Drive System
Progressive Cavity
0 ~ 340 RPM via Frequency Invertor
+/- 24 LPM
Reduction Gearbox with Drive Belt Transmission
MOTOR SPECIFICATIONS
Motor Power
Rating
Voltage
Speed Control
4.0 kW (5.36 HP)
IP 55
380/415 V, 50Hz/60Hz
Variable Speed Drive
CAPACITY & PERFORMANCE
Hopper Capacity
Loading Height
Flow Assistance
Safety Feature
75 ltr. (approx 150 kg of slurry)
800 mm (2¾ feet)
Hopper Vibrator for Consistent Material Flow
Removable Body Panels
PNEUMATIC SYSTEM
Pneumatic System
Air Consumption
Spray Gun
Chopper
Industrial-grade Valves & Fittings
50 cfm @ 7 bar
Integrated slurry & fibreglass output
approx. 1 kg/min output
CONSTRUCTION & MOBILITY
Construction
Mobility
Surface Protection
Hose Length
Electro-Pneumatic Integrated Control
Heavy-Duty Wheeled Cart
Specialty Anti-Rust Paint
7.5 mtr
