Centralised
Integrated vacuum reservoir for stable vacuum performance and efficient operation with electrical control panel for convenient automatic or manual ON/OFF operation, precise digital vacuum monitoring, and an integrated hour counter for maintenance tracking.
Resin catch pots are designed with ample safety margin and should be selected as per part size / mould volume from ½ kg to 10 kg. Dedicated Catch Pot must be used for every mould.

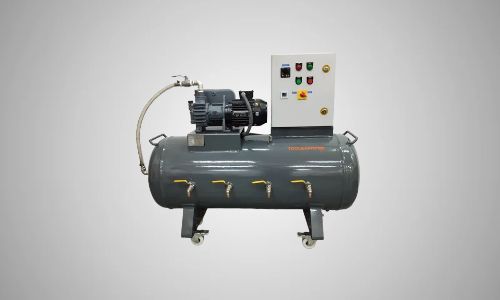

VS 260 C
| Code | Unit | VS 260 C |
|---|---|---|
| Nominal Pumping Speed @ 50 Hz | m³/hr | 16 |
| lpm | 266 | |
| Nominal Power Rating of Electric Motor | kW | 0.75 |
| Phase | 3 | |
| Reservoir | ltr | 200 |
| Resin Catch Pot | To be ordered additionally as per part size | |
VS 650 C
| Code | Unit | VS 650 C |
|---|---|---|
| Nominal Pumping Speed @ 50 Hz | m³/hr | 40 |
| lpm | 665 | |
| Nominal Power Rating of Electric Motor | kW | 1.10 |
| Phase | 3 | |
| Reservoir | ltr | 200 |
| Resin Catch Pot | To be ordered additionally as per part size | |

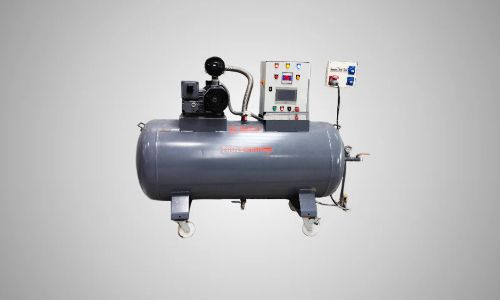

VS 1500 C
| Code | Unit | VS 1500 C |
|---|---|---|
| Nominal Pumping Speed @ 50 Hz | m³/hr | 106 |
| lpm | 1700 | |
| Nominal Power Rating of Electric Motor | kW | 2.20 |
| Phase | 3 | |
| Reservoir | ltr | 300 |
| Resin Catch Pot | To be ordered additionally as per part size | |
