Advance Laminating Rollers

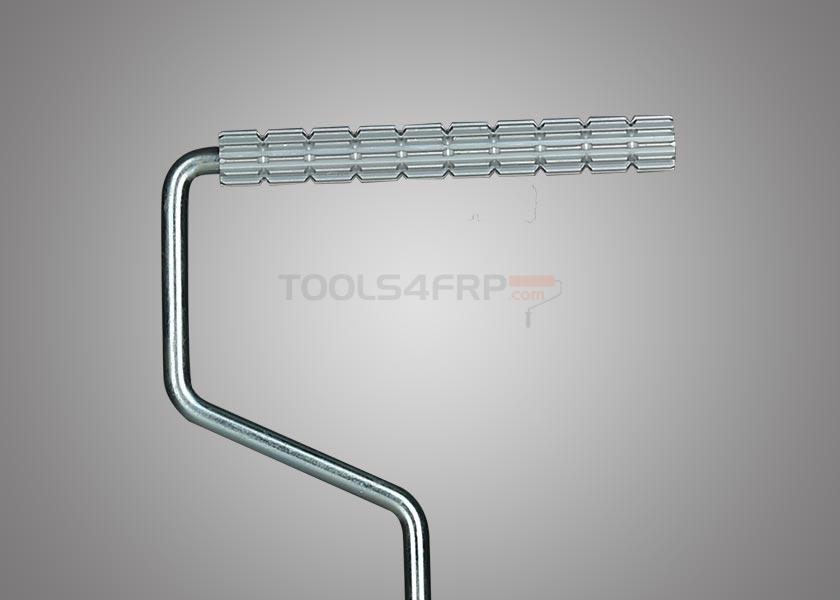

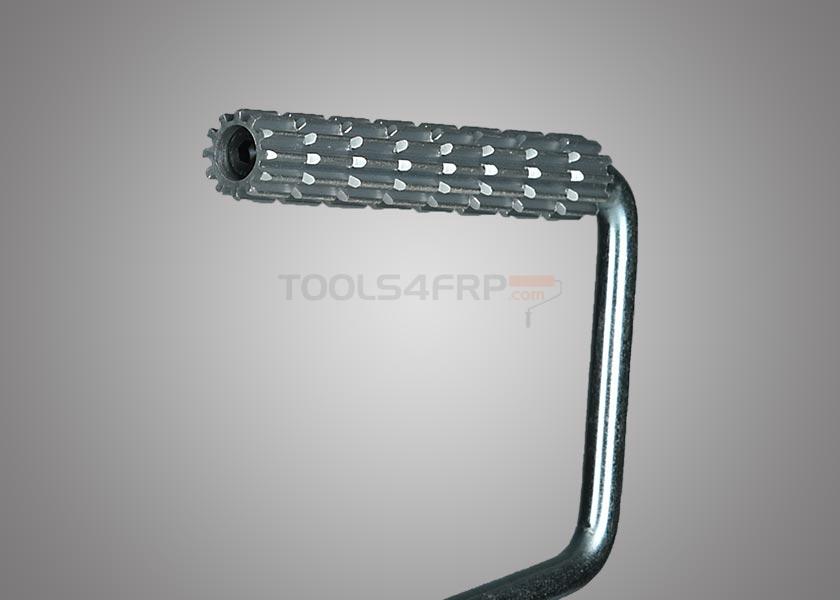

Slotted-Paddle (V Groove)
- Also know as V-Groove Roller
- Is a X generation roller
- Combines advantages of both finned & paddle roller
- Robust high quality handle; comfortable for long usage
- Tough and an all-weather tool for laminating needs
- Very affective for high viscosity filled resins
- Constant movement releases trapped air
- Heavy duty construction provide goods compaction
Product Code
RL30-12050
RL30-12075
RL30-12100
RL30-12150
RL30-19050
RL30-19075
RL30-19100
RL30-19150
RL30-25050
RL30-25075
RL30-25100
RL30-25150
RL30-25180
RL30-25200
RL30-38100
RL30-38150
RL30-38180
RL30-38200
RL30-50150
RL30-50180
RL30-50200
Diameter
½” (12.7 mm)
½” (12.7 mm)
½” (12.7 mm)
½” (12.7 mm)
¾” (19 mm)
¾” (19 mm)
¾” (19 mm)
¾” (19 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
1½” (38 mm)
1½” (38 mm)
1½” (38 mm)
1½” (38 mm)
2” (50 mm)
2” (50 mm)
2” (50 mm)
Length
2” (50 mm)
3” (75 mm)
4” (100 mm)
6” (150 mm)
2” (50 mm)
3” (75 mm)
4” (100 mm)
6” (150 mm)
2” (50 mm)
3” (75 mm)
4” (100 mm)
6” (150 mm)
7” (180 mm)
8” (200 mm)
4” (100 mm)
6” (150 mm)
7” (180 mm)
8” (200 mm)
6” (150 mm)
7” (180 mm)
8” (200 mm)

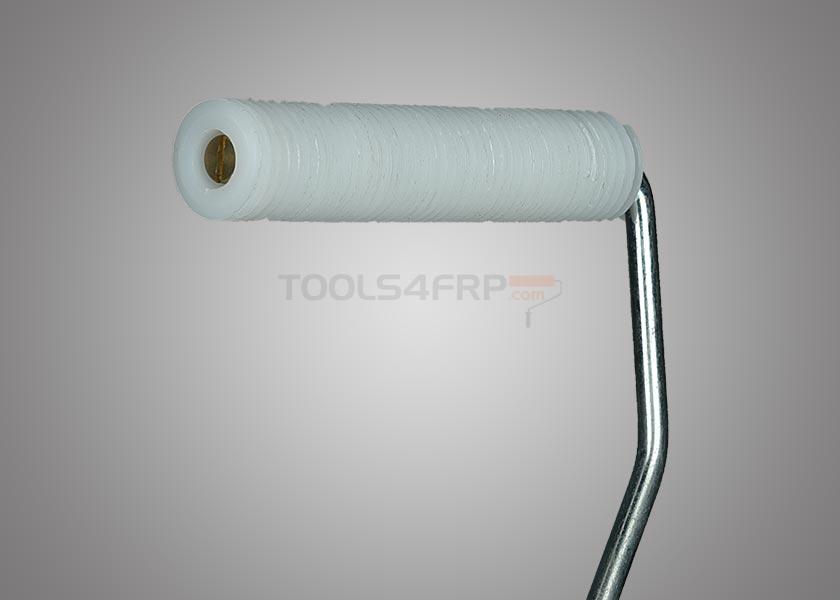

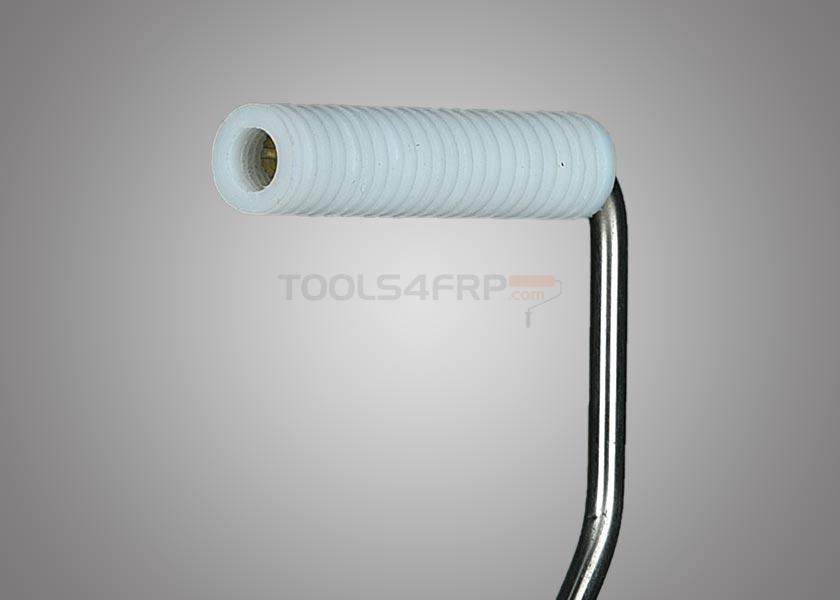

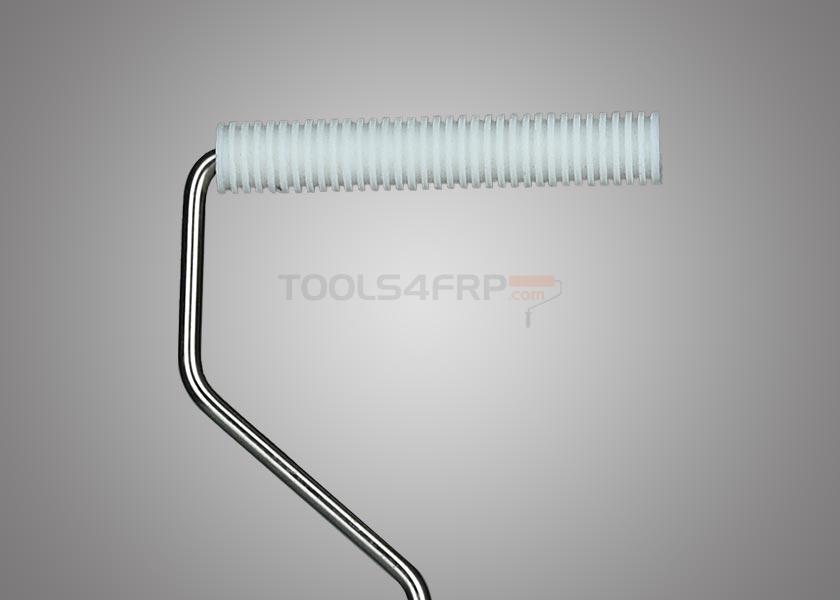

POLe Fin (Plastic)
- They are corrosion resistance
- Have high lubricity and low friction
- Smooth functioning & robust performance
- Non-stick properties, makes them very easy to clean
# Ø 1½” & Ø 2” with length 2”, 3”, 4”, 6“ & 8” available on order
Product Code
RL45-09050
RL45-09075
RL45-09100
RL45-12050
RL45-12075
RL45-12100
RL45-19050
RL45-19075
RL45-19100
RL45-19150
RL45-25050
RL45-25075
RL45-25100
RL45-25150
Diameter
⅜” (9.5 mm)
⅜” (9.5 mm)
⅜” (9.5 mm)
½” (12.7 mm)
½” (12.7 mm)
½” (12.7 mm)
¾” (19 mm)
¾” (19 mm)
¾” (19 mm)
¾” (19 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
Length
2” (50 mm)
3” (75 mm)
4” (100 mm)
2” (50 mm)
3” (75 mm)
4” (100 mm)
2” (50 mm)
3” (75 mm)
4” (100 mm)
6” (150 mm)
2” (50 mm)
3” (75 mm)
4” (100 mm)
6” (150 mm)

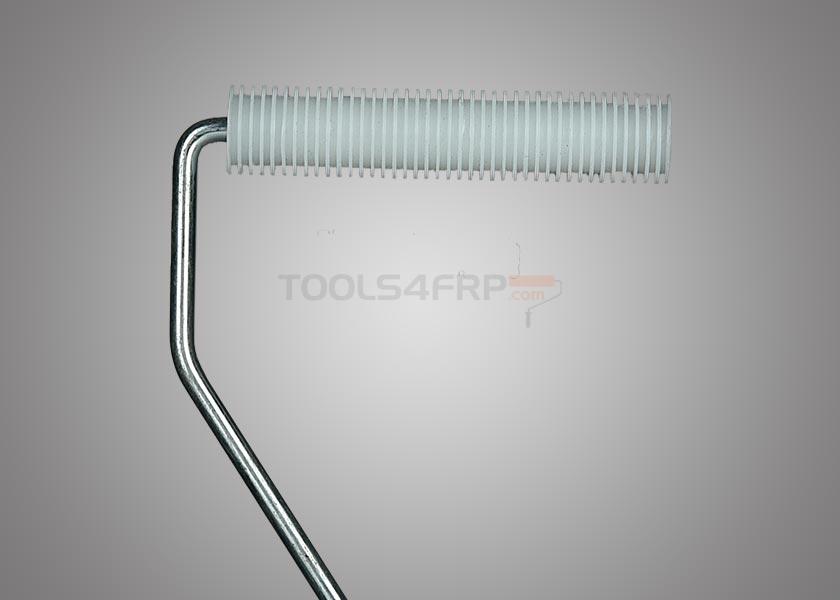

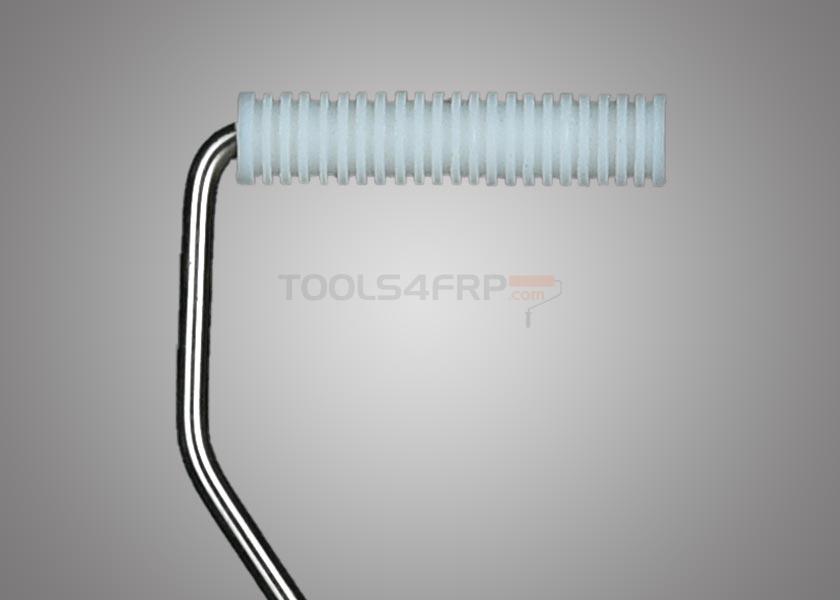

PTFe Fin
- Poly-Tetra-Fluoro-Ethylene roller is corrosion resistance
- Have high lubricity and low friction
- Smooth functioning & robust performance
- Non-stick properties, makes them very easy to clean
# Ø 1½” & Ø 2” with length 2”, 3”, 4”, 6“ & 8” available on order
Product Code
RL47-09050
RL47-09075
RL47-09100
RL47-12050
RL47-12075
RL47-12100
RL47-19050
RL47-19075
RL47-19100
RL47-19150
RL47-25050
RL47-25075
RL47-25100
RL47-25150
Diameter
⅜” (9.5 mm)
⅜” (9.5 mm)
⅜” (9.5 mm)
½” (12.7 mm)
½” (12.7 mm)
½” (12.7 mm)
¾” (19 mm)
¾” (19 mm)
¾” (19 mm)
¾” (19 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
Length
2” (50 mm)
3” (75 mm)
4” (100 mm)
2” (50 mm)
3” (75 mm)
4” (100 mm)
2” (50 mm)
3” (75 mm)
4” (100 mm)
6” (150 mm)
2” (50 mm)
3” (75 mm)
4” (100 mm)
6” (150 mm)

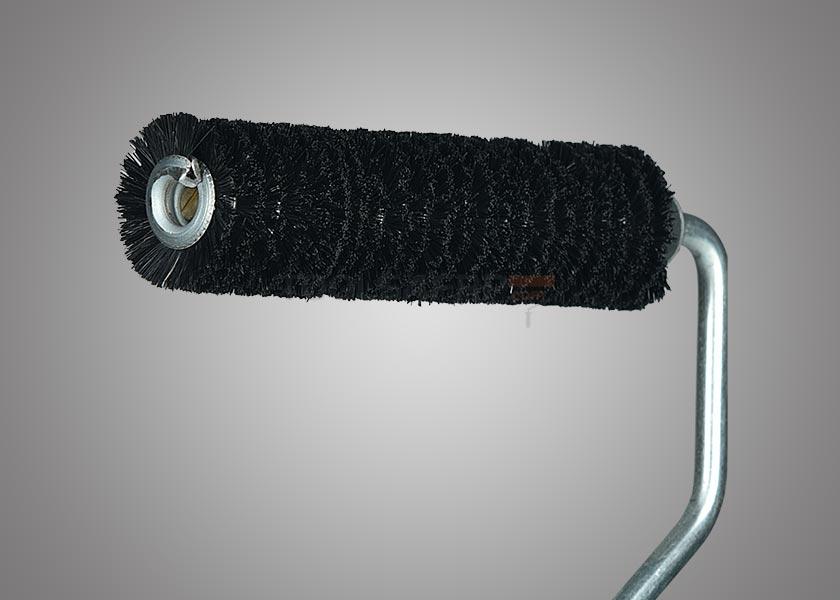

Bristle
-
Very effective for irregular surfaces
-
Removes air much faster than a brush
-
Works well for knitted/unidirectional/multi-axial fabrics
-
They consists of a spirally wound metal core onto which bristles are embedded
-
Bristles penetrate into the laminate to remove and buster air bubbles whilst producing a very effective consolidating action
Product Code
RL60-28050
RL60-28075
RL60-28100
RL60-28150
Diameter
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
1” (25.4 mm)
Length
2” (50 mm)
3” (75 mm)
4” (150 mm)
6” (150 mm)
