Direct Drive

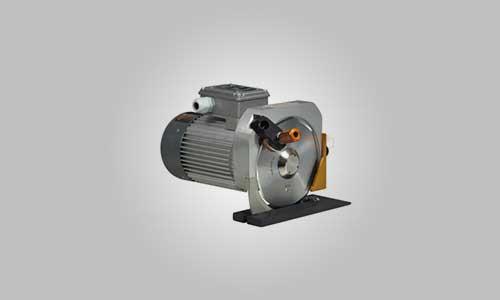

DD120MR / DD120ML
Specifications
Blade Diameter
Blade Description
Blade Speed
Counter Blade
Cutting Ability
Motor
Power
Consumption
Total Weight (with packaging)
Electric Cable Length
Description
120 mm (4.7’’)
12SDD, 8-edges, HSS steel
2600 rpm
Hard metal, Titanium coated
50 mm (2’’)
3-phases asynchronous
380/400* V, 50 Hz
380/400* V, 50 Hz
180 W
0.52 A
5700 g
1.5 mt (without plug)
* DD120MR: right side version / DD120ML: left side version (specular)
* This model can be set up at 3-phase 220 V
* On request: 480 V, 60 Hz
* This model can be set up at 3-phase 220 V
* On request: 480 V, 60 Hz
Blades
Product Code
12SDD
12CDD
Description
Ø 120 mm, 8-edges HSS steel
Ø 120 mm, circular HSS steel
Suitability
Suitable for any kind of material
Suitable for natural fibers and plastic film
DD120DT
Specifications
Blade Diameter
Blade Description
Blade Speed
Counter Blade
Cutting Ability
Motor
Power
Consumption
Total Weight (with packaging)
Electric Cable Length
Description
120 mm (4.7’’)
12SHSS, 8-edges, HSS steel
2600 rpm
Hard metal, Titanium coated
50 mm (2’’), Bidirectional
3-phases asynchronous 380/400* V, 50 Hz
180 W
0.52 A
5850 g
1.5 mt, without plug
* This model can be set up at 3-phase 220 V
* On request: 480 V, 60 Hz
* On request: 480 V, 60 Hz
Blades
Product Code
12SHSS
12CHSS
12SHSSTF
12SHSSTN
12SMD
Description
Ø 120 mm, 8-edges HSS steel
Ø 120 mm, circular HSS steel
Ø 120 mm, 8-edges HSS steel Teflon® coated
Ø 120 mm, 8-edges HSS steel coated for 1-3mm thickness of Titanium Carbonitride (TiCN)
Ø 120 mm, 8-edges Carbide (Widia®) blade in sintered material in accordance to ISO K25. Material is made of 91% Tungsten carbide (WC) and 9% Cobalt (Co)
Suitability
All kind of materials
Textiles, natural fibres, sponges and filters
Adhesive, glued materials and carpets with rubber backing
Microhardness HV 3000-4000. Coefficient of friction (vs 100Cr6) 0,45. Good duct and abrasive wear resistance. TiCn coating helps to have stronger surface of the blade and of cutting edge
This combination of materials is well-balanced in terms of hardness (life) and toughness (less breakage). Suitable for abrasive and composite materials, like fiberglass, carbon fibre or Kevlar. The blade shall be always sharpened by the diamond stone
