 Probes, Infi Connect & QRC

Home » 9 Advance Vacuum Utilities 9 Probes & Infi Connects
Vacuum Probes
Infi Connect
Quick Disconnect Coupling
Quick Release Coupling System

Vacuum Probes

These are through-bag type connectors for vacuum process connecting hose to bags. Two halves design makes it easy to use.

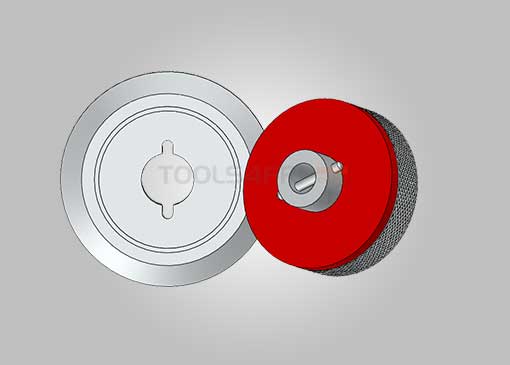

Product Code
VT10-12421
Product Name
Twist Lock-Algray, 50-1/4”
Specification
Aluminium + Silicone,190°C
Product Code
VT10-13421
VT10-13221
Product Name
Primero-Orange, 50-1/4”
Primero-Orange, 50-1/2”
Specification
Aluminium + Silicone, 190°C
Aluminium + Silicone, 190°C

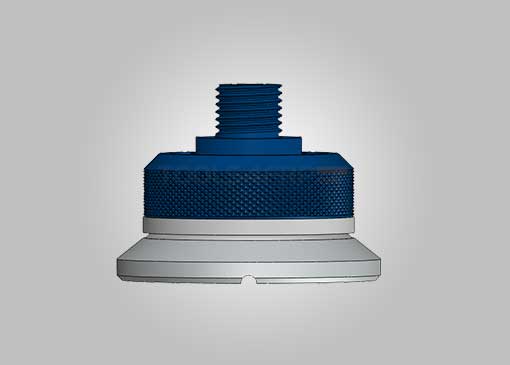

Product Code
VT10-14450
VT10-14250
Product Name
Futura-Blue, 50-1/4”
Futura-Blue, 50-1/2”
Specification
Aluminium + Silicone, 190°C
Aluminium + Silicone, 190°C
Product Code
VT10-14462
VT10-14262
Product Name

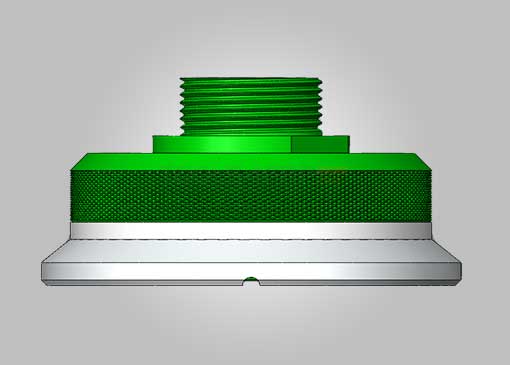

Futura-Green, 62-1/4”
Futura-Green, 62-1/2”
Specification
Aluminium + Silicone, 190°C
Aluminium + Silicone, 190°C
Product Code
VT10-15475
VT10-15275
Product Name
Enorm-Red, 75-1/4”
Enorm-Red, 75-1/2”
Specification
Aluminium + Silicone, 190°C
Aluminium + Silicone, 190°C

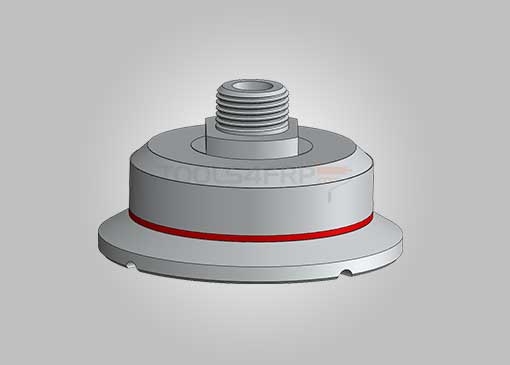

Product Code
VT10-24450
VT10-24250
Product Name
Stahl-Gray, 50-1/4”
Stahl-Gray, 50-1/2”
Specification
Stainless Steel, 340°C
Stainless Steel, 340°C
Product Code
VT10-24463
VT10-24263
Product Name
Stahl-Gray, 63-1/4”
Stahl-Gray, 63-1/2”
Specification
Stainless Steel, 340°C
Stainless Steel, 340°C

Infi Connect

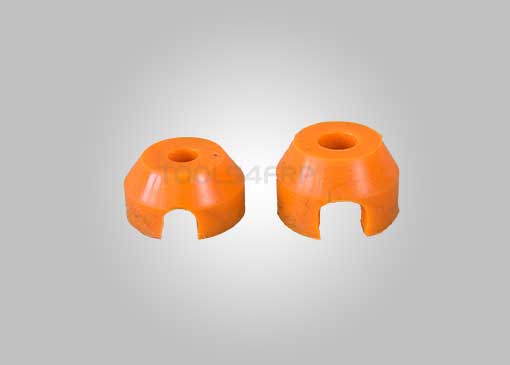

Silo Infi Connect

Suitable for vacuum infusion, vacuum bagging, prepreg and other vacuum based process.

  • Material: Silicone
  • Max. Use Temp.: 190°C
Product Code
VT18-35108 (Orange)
VT18-35110 (Orange)
Product Name

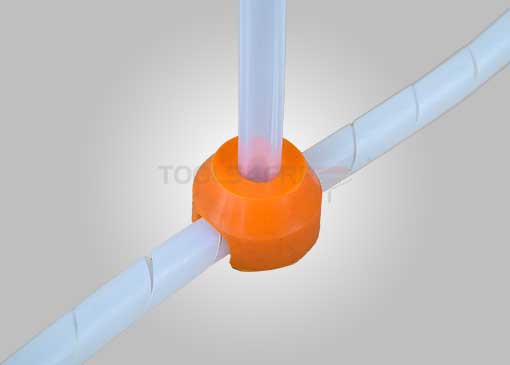

Silo Infi-Line Connect, 8
Silo Infi-Line Connect, 10
Specification
Tube OD 8 mm, Spiral 8 mm
Tube OD 10 mm, Spiral 8 ~ 10 mm
Product Code
VT18-35208 (Orange)
VT18-35210 (Orange)
Product Name

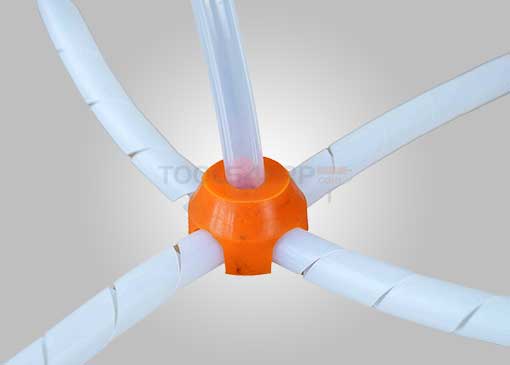

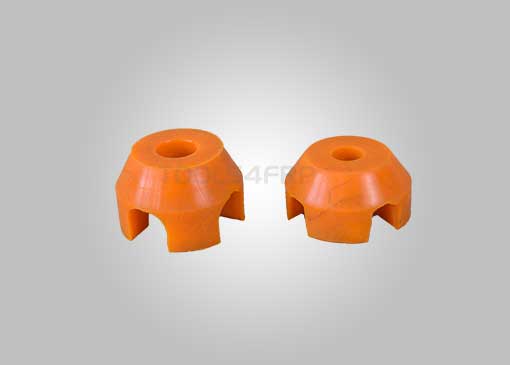

Silo Infi-Cross Connect, 8
Silo Infi-Cross Connect, 10
Specification
Tube OD 8 mm, Spiral 8 mm
Tube OD 10 mm, Spiral 8 ~ 10 mm

Alu Infi Connect

Suitable for vacuum infusion, vacuum bagging, prepreg and other vacuum based process

  • Material: Aluminium
  • Max. Use Temp.: 190°C
Product Code
VT18-15110 (Orange)
VT18-15112 (Blue)
VT18-15114 (Green)
VT18-15116 (Red)
Product Name

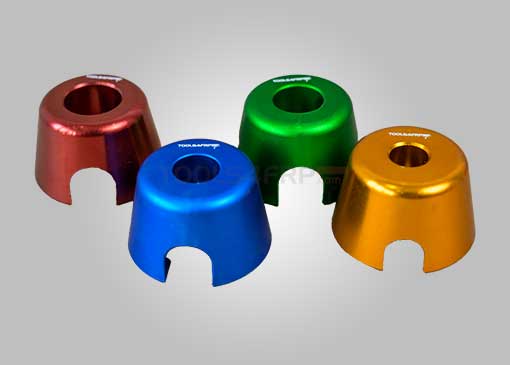

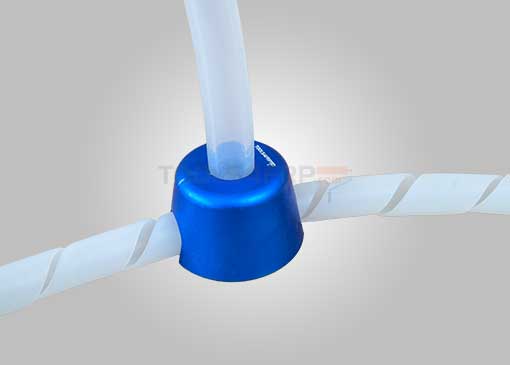

Alu Infi-Line Connect, 10
Alu Infi-Line Connect, 12
Alu Infi-Line Connect, 14
Alu Infi-Line Connect, 16
Specification
Tube OD 10 mm, Spiral 8 ~ 10 mm
Tube OD 12 mm, Spiral 8 ~ 12 mm
Tube OD 14 mm, Spiral 8 ~ 12 mm
Tube OD 16 mm, Spiral 8 ~ 12 mm
Product Code
VT18-15210 (Orange)
VT18-15212 (Blue)
VT18-15214 (Green)
VT18-15216 (Red)
Product Name

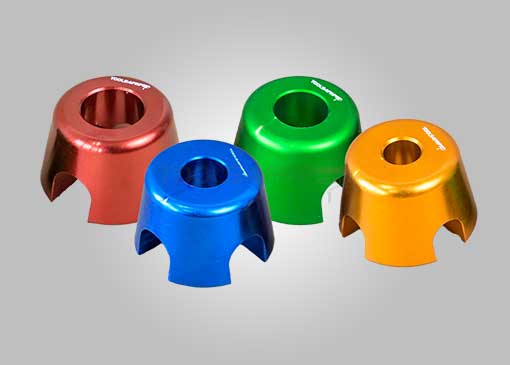

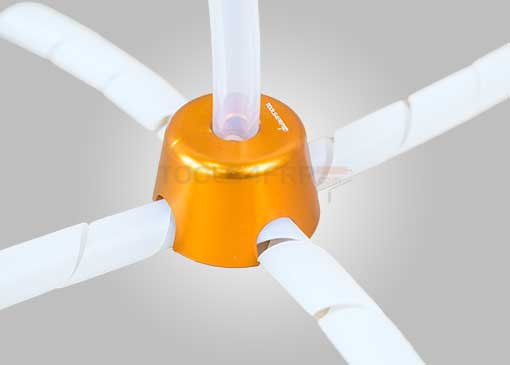

Alu Infi-Cross Connect, 10
Alu Infi-Cross Connect, 12
Alu Infi-Cross Connect, 14
Alu Infi-Cross Connect, 16
Specification
Tube OD 10 mm, Spiral 8 ~ 10 mm
Tube OD 12 mm, Spiral 8 ~ 12 mm
Tube OD 14 mm, Spiral 8 ~ 12 mm
Tube OD 16 mm, Spiral 8 - 12 mm

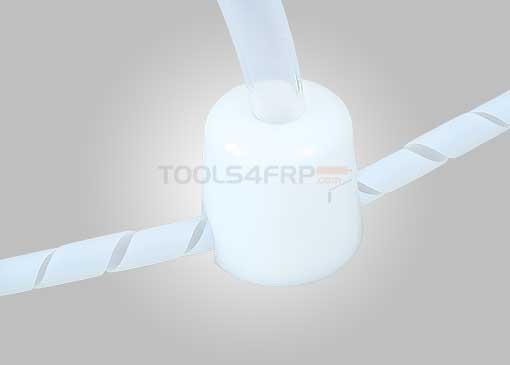

Poly Infi-Line Connect

  • Material: Polymer
  • Max. Use Temp.: 90°C
Product Code
VT18-25116 (White)
VT18-25118 (White)
VT18-25119 (White)
Product Name
Poly Infi-Line Connect 16
Poly Infi-Line Connect 18
Poly Infi-Line Connect 19
Specification
Tube OD 16 mm, Spiral 8 - 10 mm
Tube OD 18 mm, Spiral 8 - 10 mm
Tube OD 19 mm, Spiral 8 - 10 mm

Quick Disconnect Coupling

The coupling is supplied in two halves – male and a female; when connected they make an airtight seal and allow air to pass through. Disconnected; internal valves close automatically to preventing any air leakage past either side of coupling. These are used to connect vacuum hoses to valve in vacuum process applications. Male side of coupling is assembled together with valve (port) and female side is attached to a vacuum hose.

Connection solutions for various applications to achieve safety and save time. Suitable for pneumatics and hydraulic. On the shop-floor, dis-connection and re-connection are happening all the time. Quick Disconnect Coupling provides clean break and full flow safety.

­Material Type: Carbon Steel, Zinc plated
Max Working Temp.: +190° C

Product Code
VT20-23422
VT20-23222
VT23-23208
Socket
¼” BSP Female
¼” BSP Female
½” BSP Male
Plug
¼” BSP Female
¼” BSP Female
for tube OD 8 mm

Quick Release Coupling System

QRC work on push-pull principle.
Any of the socket can be coupled with any plug.

  • Material: Nickel coated Steel
  • Seal: Up to 120°C
  • Max. Use Temp.: 100°C
  • Max. Pressure: 10 bar
Product Code
03-101-0110_(id)
Product Name
QRC-Socket, Barb_(id)
Specification
Tube id: 8, 10 & 12 mm
Product Code
03-101-0111_(od)
Product Name
QRC-Socket, Ferrule_(od)
Specification
Tube od: 8, 10 & 12 mm
Product Code
03-101-0112_(thr)
Product Name
QRC-Socket, Male_(thr)
Specification
Thread (thr): ¼”, ⅜” & ½“
Product Code
03-101-0113_(thr)
Product Name
QRC-Socket, Female_(thr)
Specification
Thread (thr): ¼”, ⅜” & ½“
Product Code
03-101-0116_(id)
Product Name
QRC-Plug, Barb_(id)
Specification
Tube id: 8, 10 & 12 mm
Product Code
03-101-0117_(od)
Product Name
QRC-Plug, Ferrule_(od)
Specification
Tube od: 8, 10 & 12 mm
Product Code
03-101-0118_(thr)
Product Name
QRC-Plug, Male_(thr)
Specification
Thread (thr): ¼”, ⅜” & ½“
Product Code
03-101-0119_(thr)
Product Name
QRC-Plug, Female_(thr)
Specification
Thread (thr): ¼”, ⅜” & ½“
