Vacuum Station
TOOLS4FRP Vacuum Station are ready-to-use, fully equipped with Vacuum Pump, Electric Motor, an optimum Resin Catch Pot, all necessary Electrical and Pneumatic connections.
All Vacuum Stations are designed for effortless integration with VaRTM equipment, Silicone Bagging Infusion Technology, Resin Infusion, Prepreg Moulding or Bagging processes.

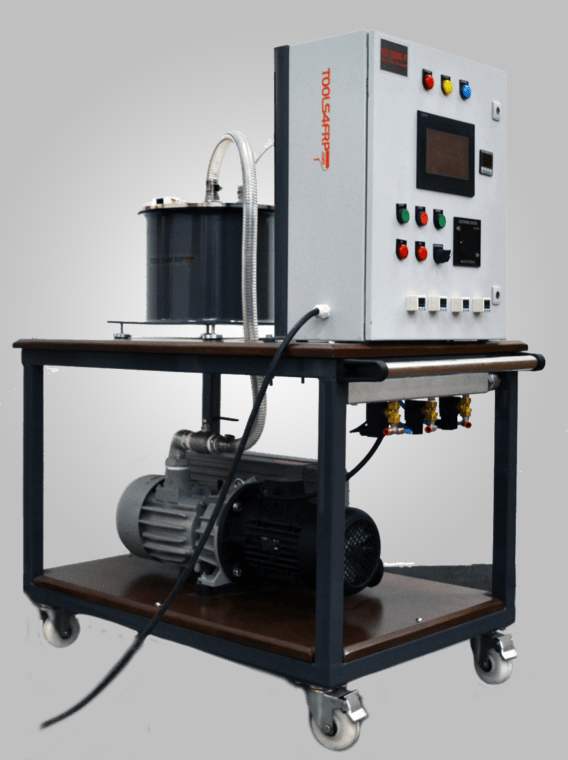

Vacuum Station with advance PLC
Engineered for Precision, Reliability, and Process Automation. PLC available for all options of vacuum station on demand.
| Code | Unit | VS 650 P | VS 1500 P |
|---|---|---|---|
| Nominal Pumping Speed @ 50 Hz | m³/hr | 40 | 102 |
| lpm | 665 | 1700 | |
| Nominal Power Rating of Electric Motor | kW | 1.10 | 2.2 |
| Phase | 3 | 3 | |
| Resin Catch Pot | Kg | 15 | 20 |
HMI Panel
- Service Reminder for timely maintenance
- Automatic Pressure Cut-Off / Cut-In Control
- Auto and Manual Modes for flexible operation
- Live Display of all system parameters
- Independent 4-Output Pressure Regulation
- Integrated Pressure Switch for precise control
- Heat RTD Sensor for temperature monitoring
Application
- Resin Transfer Moulding (RTM)
- Vacuum Infusion Process (VIP)
- FRP Composite Manufacturing
- Aerospace Composite Components
- Wind Energy Componen
- Marine and Automotive Composite Production
