Vacuum Station
TOOLS4FRP Vacuum Station are ready-to-use, fully equipped with Vacuum Pump, Electric Motor, an optimum Resin Catch Pot, all necessary Electrical and Pneumatic connections.
All Vacuum Stations are designed for effortless integration with VaRTM equipment, Silicone Bagging Infusion Technology, Resin Infusion, Prepreg Moulding or Bagging processes.
Compact, Single Phase
Key Features
- Ultra Compact
- Ideal for small operations, institutions & enthusiasts
- Anti suck back valve for pump protection
- Oil sealed & air cooled for consistent vacuum performance
- Optimized power consumption for cost effective operation
Code
Unit

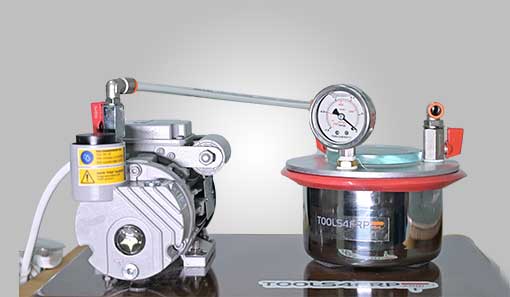

VS 30
VS 60
VS 125
Electric Motor
Electric Motoris selected to give maximum flexibilty.
Resin Catch Pot
Resin Catch Potare our original designs with stainless steel tank, transparent lid and easy connections. Designed with ample safety margin with a total capacity of 1 kg.
Medium, Three Phase
Key Features
- Ideal for full scale production
- Anti suck back valve for pump protection
- Oil sealed & air cooled for consistent vacuum performance
- Optimized power consumption for cost effective operation
Code
Unit
VS 260

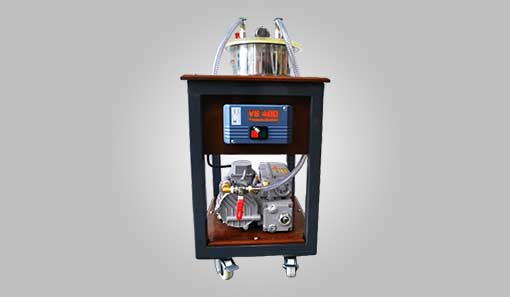

VS 400
VS 650
Electric Motor
Electric Motoris selected to give maximum flexibility. Electrical Setup is in a water tight box with easy to use MCB switch.
Pneumatic Manifold
Pneumatic Manifoldwith 3 inlet port for tube of 10 mm OD inlet.
Resin Catch Pot
are our original designs with aluminium tank,
transparent lid, easy connections and premium rust proof coating in steel tanks. Designed with ample safety margin.
Heavy-Duty, Three Phase
When your production demands the best in vacuum technology, TOOLS4FRP Heavy Vacuum Stations deliver unmatched performance!
Key Features
- For large-scale multiple mould production
- Extreme vacuum stability for flawless resin infusion
- Advanced oil management for prolonged pump life
- Powerful suction with superior motor efficiency
- Heavy-duty construction for continuous high-capacity vacuum
- Best-in-class performance for industrial vacuum needs
Code
Unit

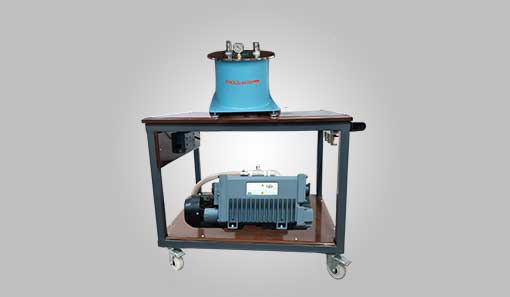

VS 1000
VS 1500
VS 3000
Pneumatic Manifold
with 4 inlet ports for tube of 12 mm OD. # Inlet ports can be customized as per user requirement.
Electric Motor
is selected to give maximum flexibility. Electrical Setup is in a water tight box with easy to use 3 phase DOL starter.
Resin Catch Pot
are our original designs with steel tank, transparent lid, easy connections and
premium rust proof coating. Designed with
ample safety margin.

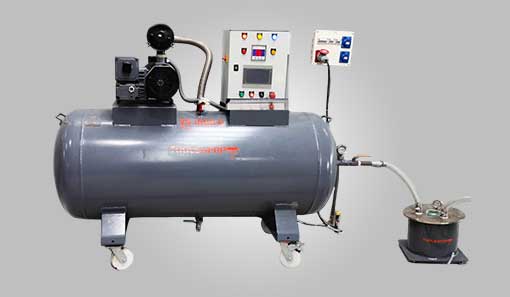

Centralized Vacuum Station
| Code | Unit | VS 260 C | VS 650 C | VS 1500 C |
|---|---|---|---|---|
| Nominal Pumping Speed @ 50 Hz | m³/hr | 16 | 40 | 106 |
| lpm | 266 | 665 | 1700 | |
| Nominal Power Rating of Electric Motor | kW | 0.75 | 1.10 | 2.20 |
| Phase | 3 | 3 | 3 | |
| Reservoir | ltr | 200 | 200 | 300 |
| Resin Catch Pot | To be ordered additionally as per part size | |||
Electrical Control Panel
- Automatic ON/OFF Control for unattended operation
- Manual ON/OFF Control for user convenience
- Digital Vacuum Level Gauge for accurate monitoring
- Hour Counter for maintenance tracking
# Order Additionally
Resin Catch Pot are our original designs with metal tank, transparent lid, easy connections & premium rust proof coating. Designed with ample safety margin should be selected as per part size / mould volume from ½ kg to 5 kg. Dedicated Catch Pot must be used for every mould.

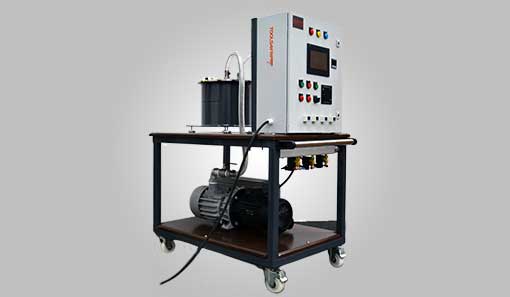

Vacuum Station with advance PLC
Engineered for Precision, Reliability, and Process Automation. PLC available for all options of vacuum station on demand.
| Code | Unit | VS 650 P | VS 1500 P |
|---|---|---|---|
| Nominal Pumping Speed @ 50 Hz | m³/hr | 40 | 102 |
| lpm | 665 | 1700 | |
| Nominal Power Rating of Electric Motor | kW | 1.10 | 2.2 |
| Phase | 3 | 3 | |
| Resin Catch Pot | Kg | 15 | 20 |
HMI Panel
- Service Reminder for timely maintenance
- Automatic Pressure Cut-Off / Cut-In Control
- Auto and Manual Modes for flexible operation
- Live Display of all system parameters
- Independent 4-Output Pressure Regulation
- Integrated Pressure Switch for precise control
- Heat RTD Sensor for temperature monitoring
Application
- Resin Transfer Moulding (RTM)
- Vacuum Infusion Process (VIP)
- FRP Composite Manufacturing
- Aerospace Composite Components
- Wind Energy Componen
- Marine and Automotive Composite Production
