Advance Vacuum Accessories

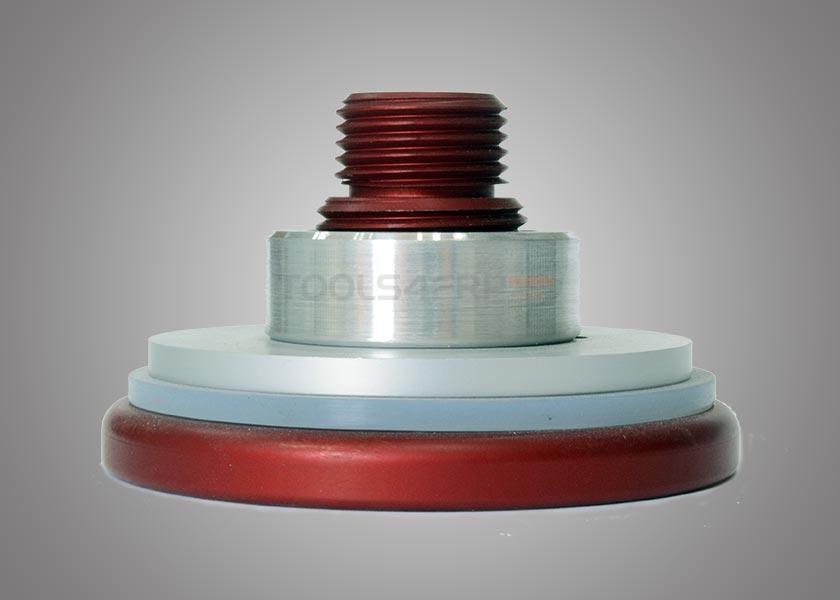

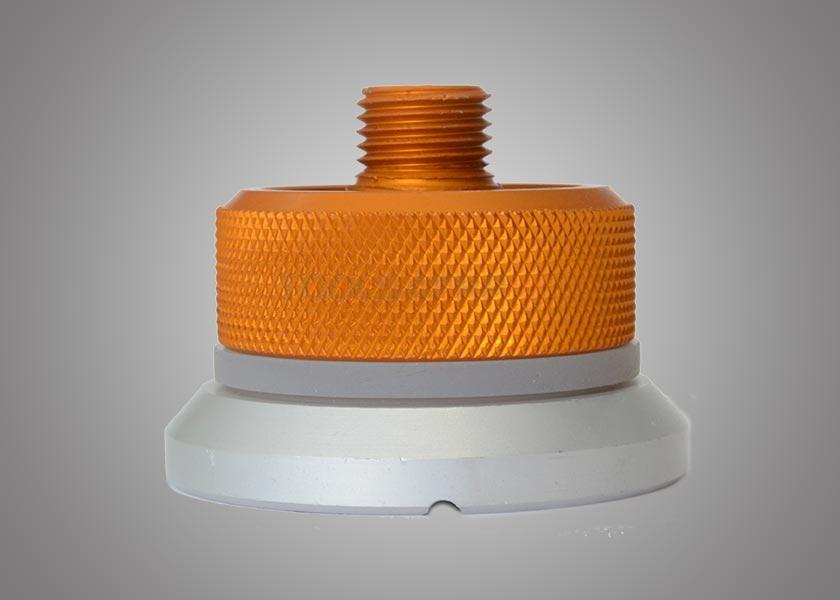

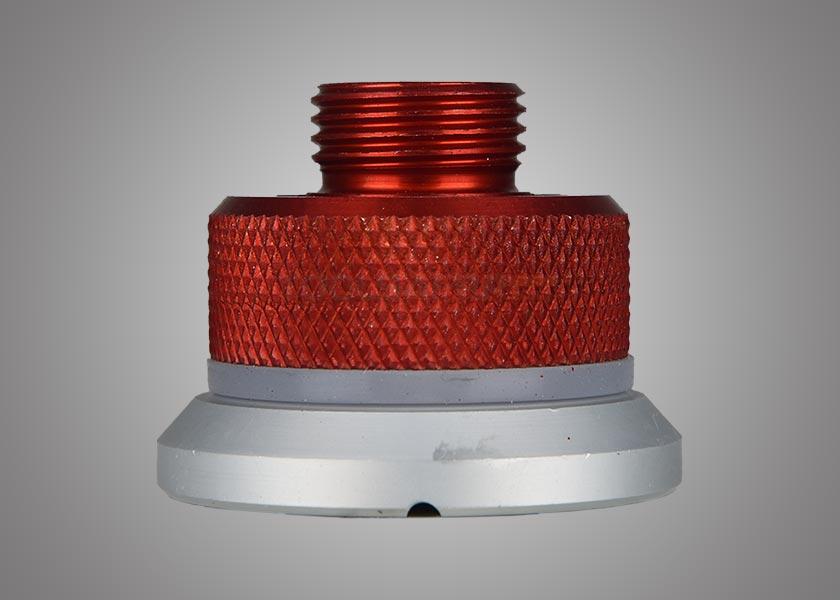

Vacuum Probes
These are through-bag type connectors for vacuum process connecting hose to bags. Two halves design makes it easy to use.
Product Code
Product Name
Specification

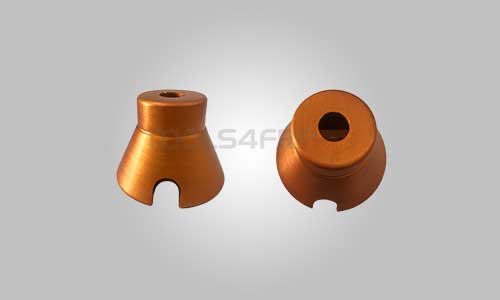

Infi Connect
Silo Infi Connect
Suitable for vacuum infusion, vacuum bagging, prepreg and other vacuum based process.
- Material: Silicone
- Max. Use Temp.: 190°C
Product Code
Product Name
Specification
Alu Infi Connect
Suitable for vacuum infusion, vacuum bagging, prepreg and other vacuum based process
- Material: Aluminium
- Max. Use Temp.: 190°C
Product Code
Product Name
Specification
Poly Infi-Line Connect
- Material: Polymer
- Max. Use Temp.: 90°C
Product Code
Product Name
Specification

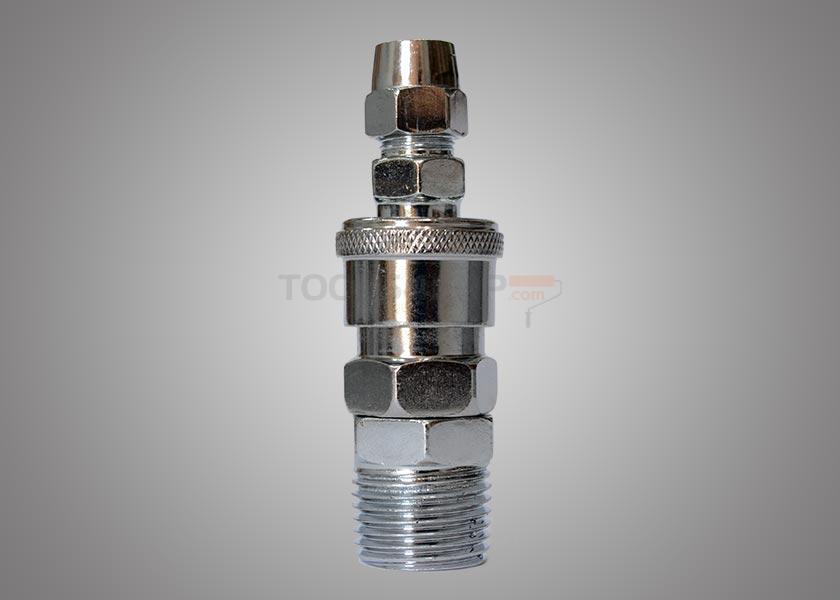

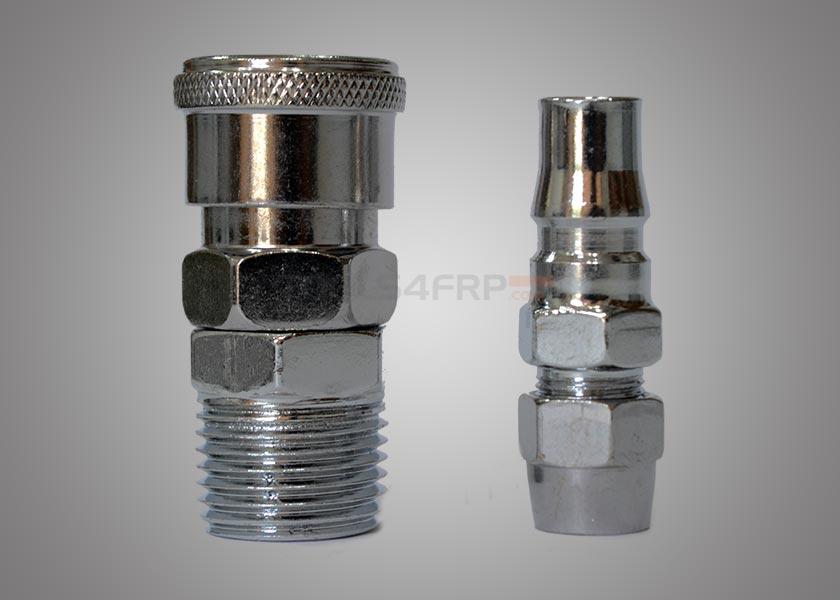

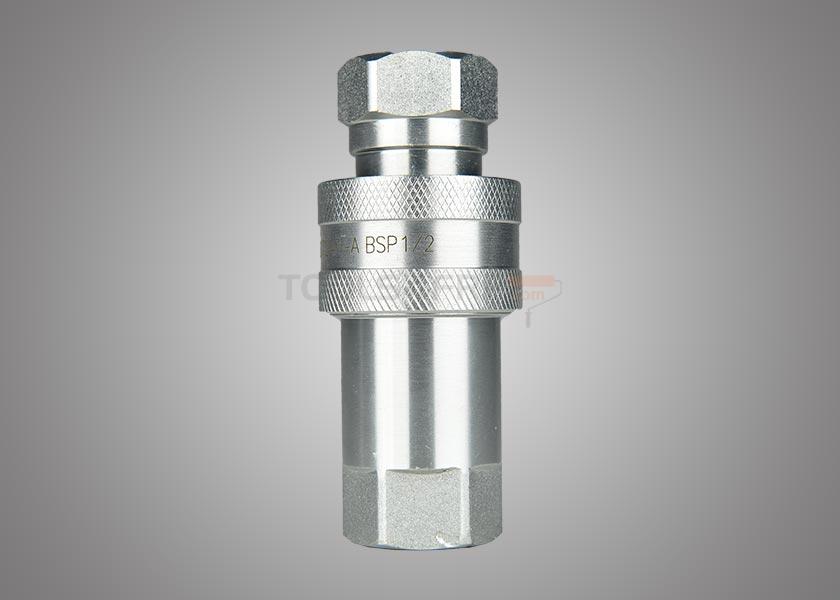

Quick Disconnect Coupling
The coupling is supplied in two halves – male and a female; when connected they make an airtight seal and allow air to pass through. Disconnected; internal valves close automatically to preventing any air leakage past either side of coupling. These are used to connect vacuum hoses to valve in vacuum process applications. Male side of coupling is assembled together with valve (port) and female side is attached to a vacuum hose.
Connection solutions for various applications to achieve safety and save time. Suitable for pneumatics and hydraulic. On the shop-floor, dis-connection and re-connection are happening all the time. Quick Disconnect Coupling provides clean break and full flow safety.
Material Type: Carbon Steel, Zinc plated
Max Working Temp.: +190° C
Product Code
Socket
Plug
Quick Release Coupling System
QRC work on push-pull principle.
Any of the socket can be coupled with any plug.
- Material: Nickel coated Steel
- Seal: Up to 120°C
- Max. Use Temp.: 100°C
- Max. Pressure: 10 bar
Product Code
Product Name
Specification
Connectors and Valves

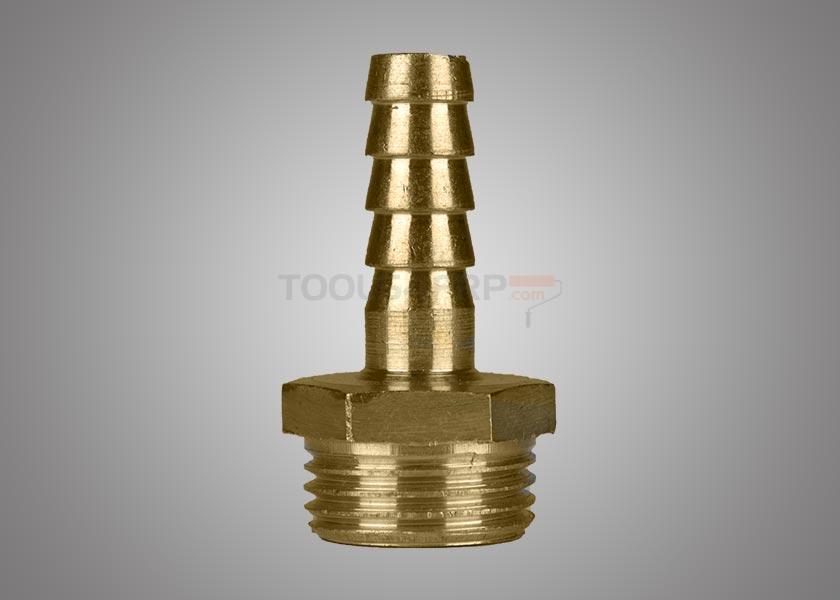

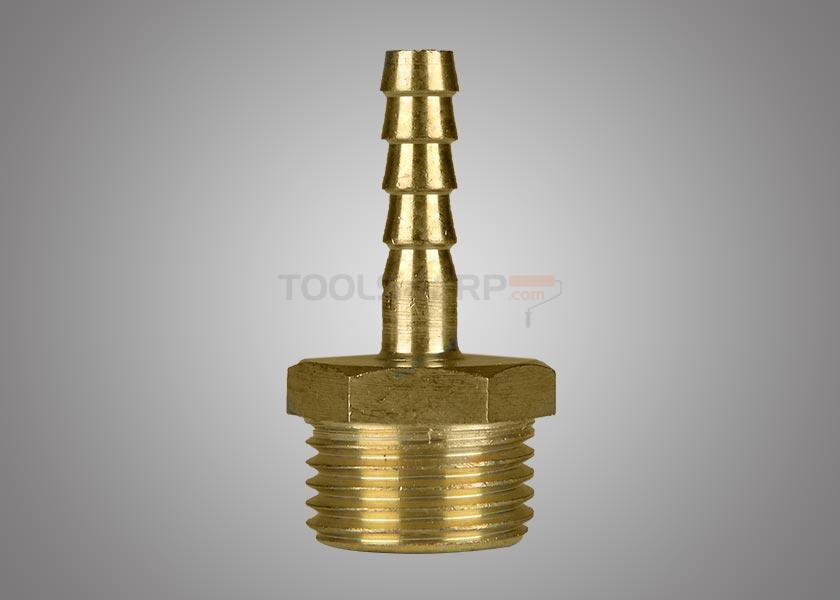

Barb (Hose Tail) Connector
Our connectors are made of high quality brass. It is an alloy of copper and zinc. Depending on the application, proportions are varied to achieve varying mechanical and electrical properties.
We choose this metal alloy for applications in composites as it has excellent corrosive resistance, and its joining, polishing and finishing characteristics. Brass is easily machined.
Product Code
Specification
Tube (id): 6, 8, 10 & 12 mm

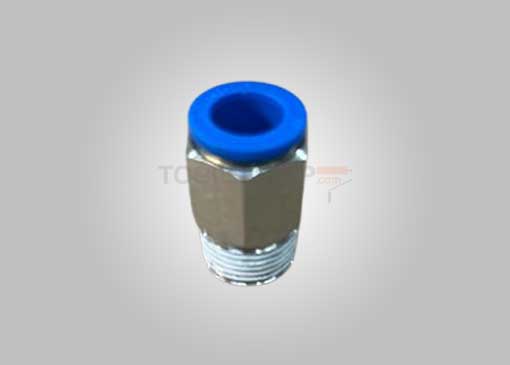

OT Male Connector
Product Code
Specification
Tube (od): 6, 8, 10 & 12 mm

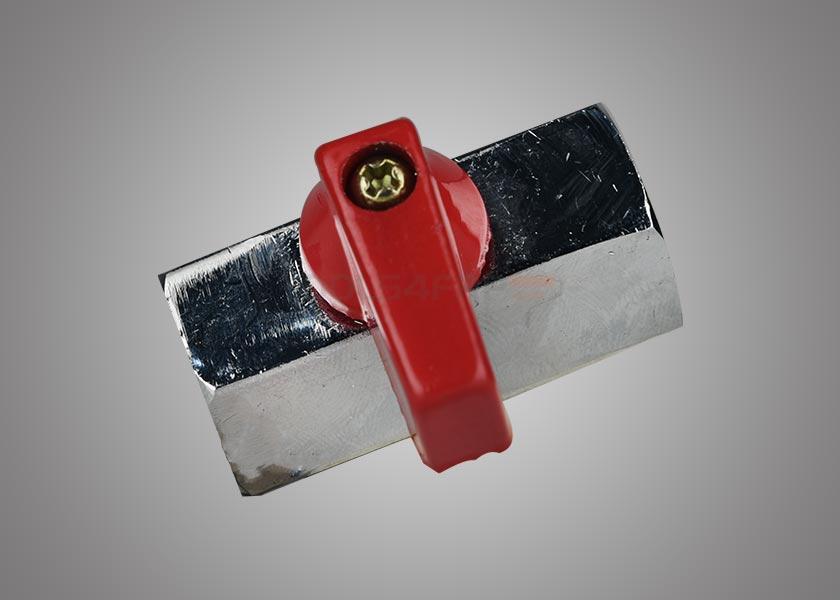

¼ Turn Vacuum Valves
To start and stop vacuum supply
Ideal to use with Barb Connectors & Vacuum Probes
Options of ¼” and ½” BSP Female Thread available
Product Code
Description
Thread (thr): ¼“, ⅜” & ½”
Thread (thr): ¼“, ⅜” & ½”

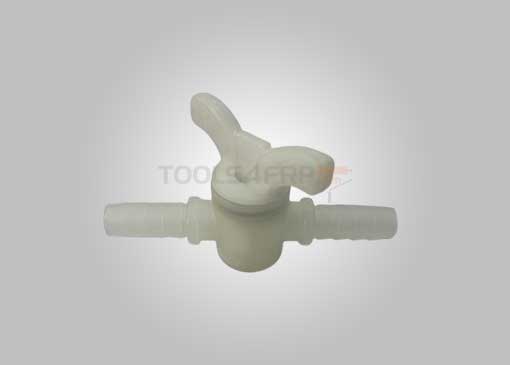

Poly Vac Valve, Barb ½”
Product Code
Description

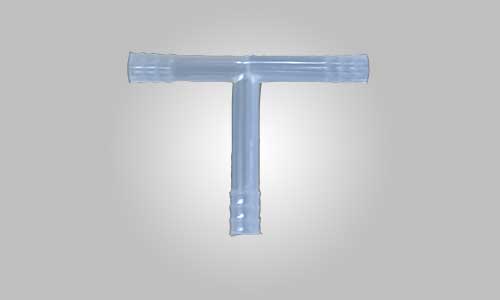

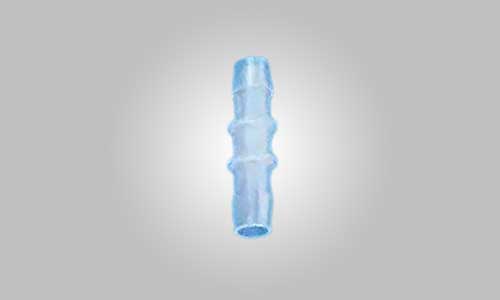

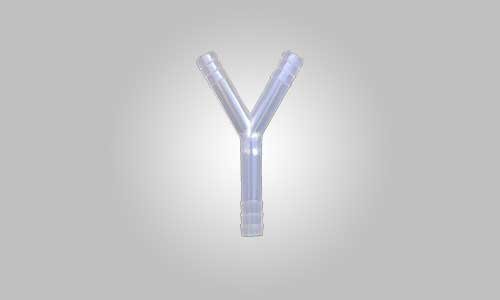

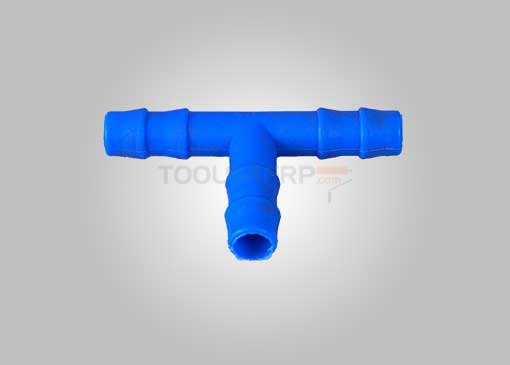

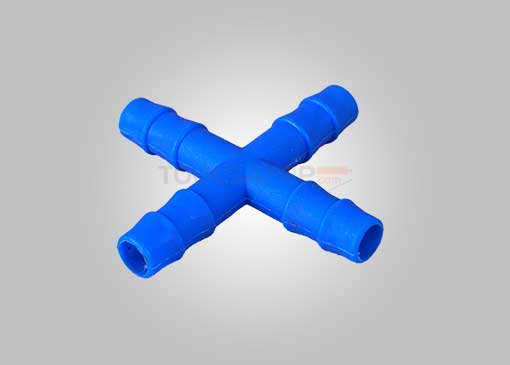

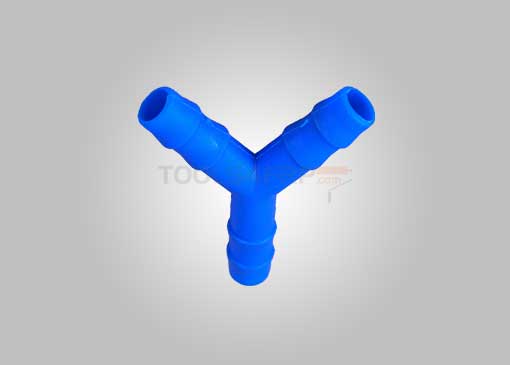

Poly Connect
Product Code
Description
Tube (id): 8, 10 & 12 mm
Tube (id): 8, 10 & 12 mm
Tube (id): 8, 10 & 12 mm
# sold in a pack of 25 pcs

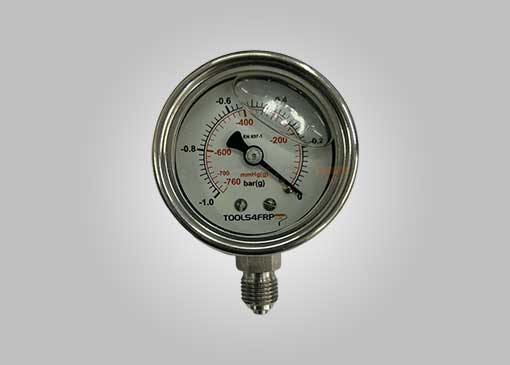

Vacuum Gauge
- Dial Size: Ø 50 mm
- Least Count: – 0.02 ba
- Range: 0 to -1 bar(g), 0 to -760 mm Hg(g)
- Thread Type: ¼” M, BSP
Product Code
Description
Full SS, Liquid Filled, Bottom Entry
Steel, Dry, Bottom Entry

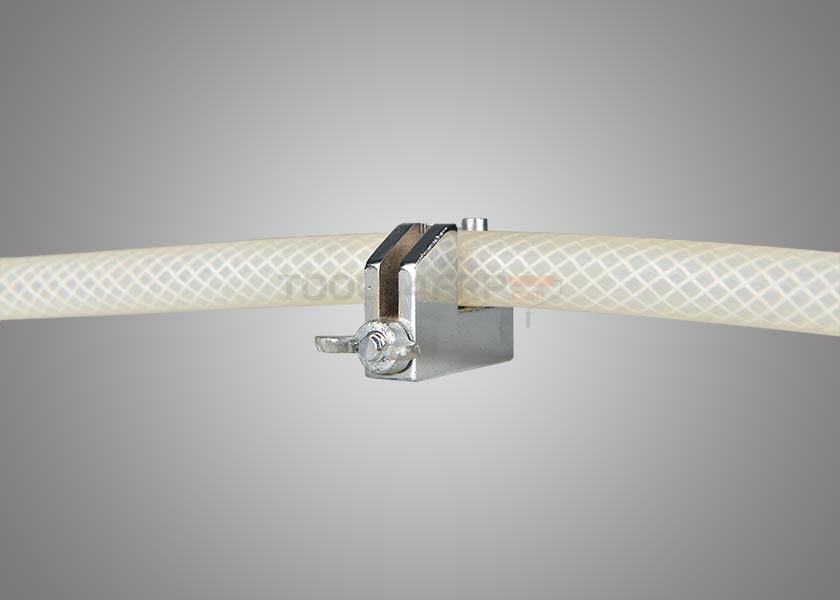

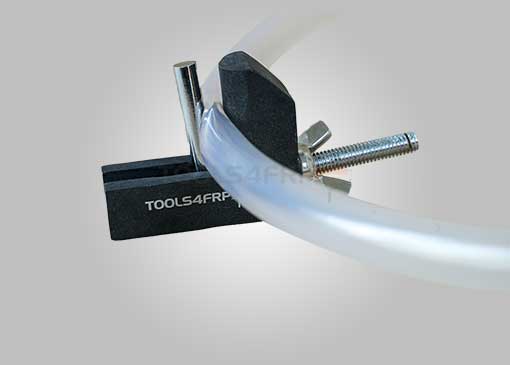

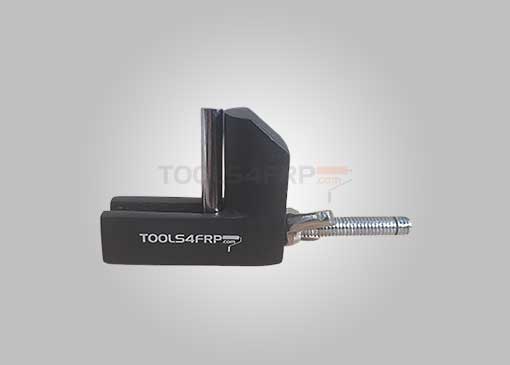

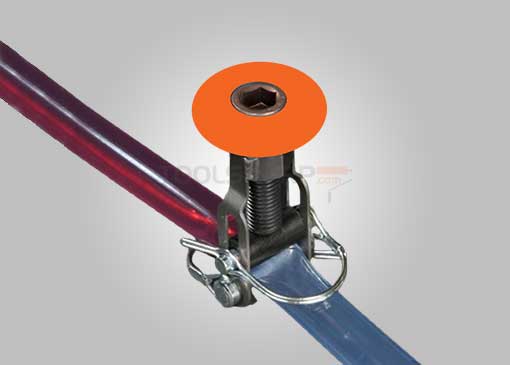

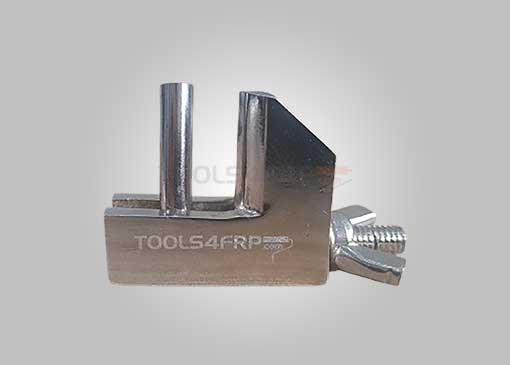

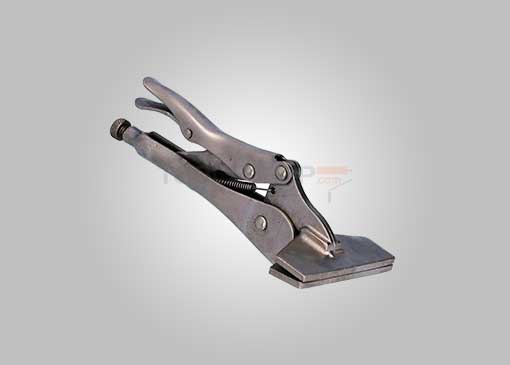

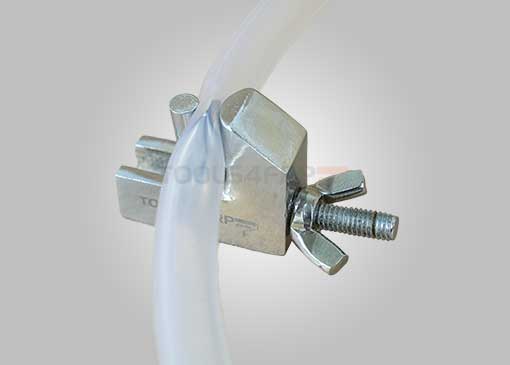

Resin Line Clamp
Use to shut resin feed & vacuum feed line.
Product Code
Product Name
Tubes
Spiral Tube
Spiral Tubing, a standard for resin infusion. Ideally suited for in-bag vacuum line extenders or resin feed lines. Allow vacuum pressure to be easily dispersed around a part.
Product Code
Specification
Silicone Tube
Translucent, flexible & soft. Chemically stable and non-reactive to most resins. Suitable for prepreg, infusion, bagging & VaRTM.
Max. Temp: 190 °C
Product Code
Specification

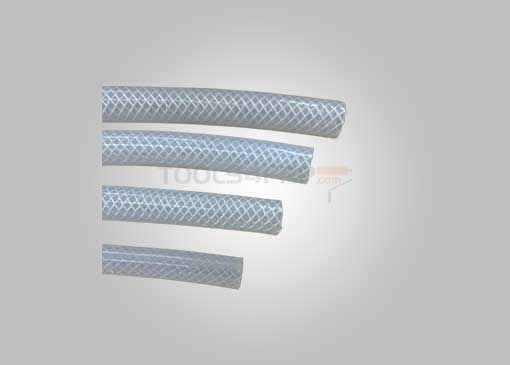

Silicone Hose – Polybraid
Polyester braided, Bi-layer silicone hose. Excellent flexibility for extreme vacuum and high pressure applications.
Max. Temp: 190 °C
Product Code
Specification

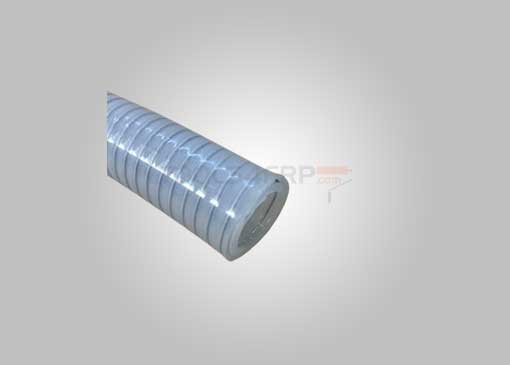

Silicone Hose – Wirein
Bi-layer silicone hose for high temperature application. Reinforced with SS 316L helical wire for maximum vacuum condition.
Product Code
Specification

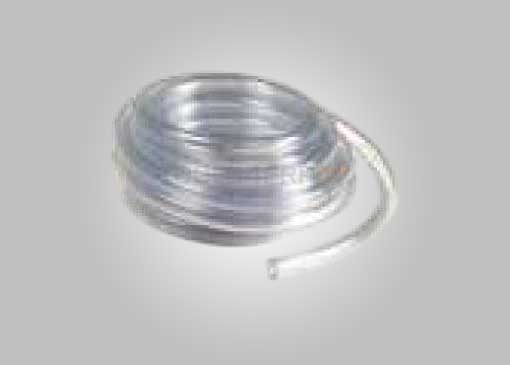

Eco Feed Tube
Transparent & economical solution for resin flow. Mostly for one-time use at room temperature applications. Ideal for VaRTM & +ve pressure processes.
Product Code
Specification
PUT Tube
Heavy Duty, Transparent Polyurethane Tube. Suitable for vacuum and resin flow. Mostly for one-time use at room temperature applications. Ideal for VaRTM, Infusion & Bagging processes.
Product Code
Specification

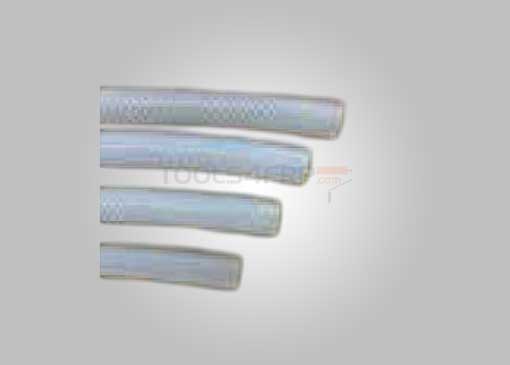

Opaylene Tube
Opaque (translucent) & rigid tube. Multipurpose, mostly for one-time use at room temperature applications. Made of industrial grade polypropylene.
Product Code
Specification

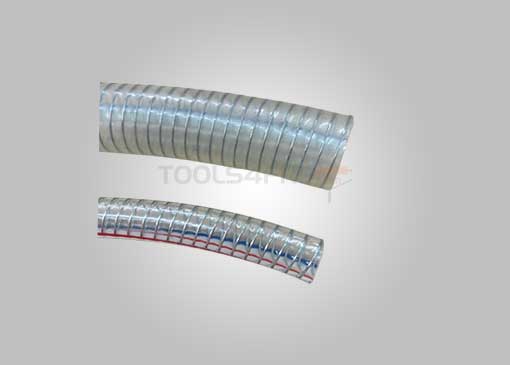

Vac Hose – Wirein
Transparent hose reinforced with SS helical wire. Suitable for low temperature vacuum applications. Works on ID
Product Code
Specification

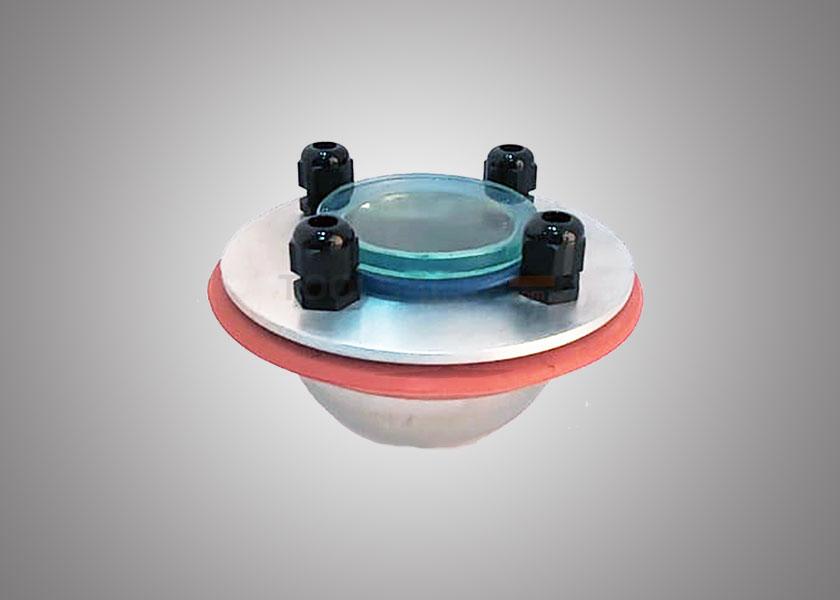

Catch Pot & Resin Traps

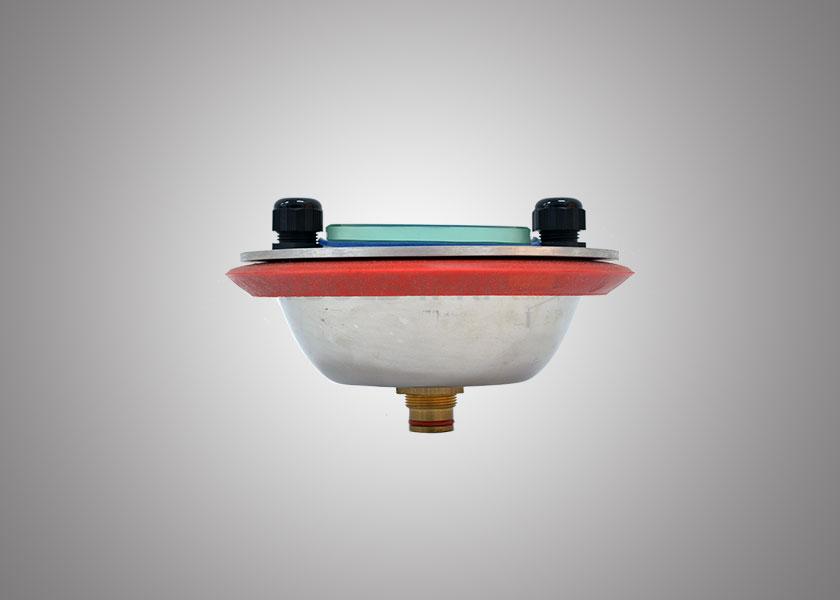

Stainless steel vessel, Aluminium lid with glass & brass bottom connector
Product Code
Specifications
1 KG
Stainless steel vessel, Aluminium lid with glass & no bottom connector
Product Code
Specifications
1 KG
Stainless steel vessel, Aluminium lid with glass & vaccume guage. No bottom connector.
Product Code
Specifications
1 KG

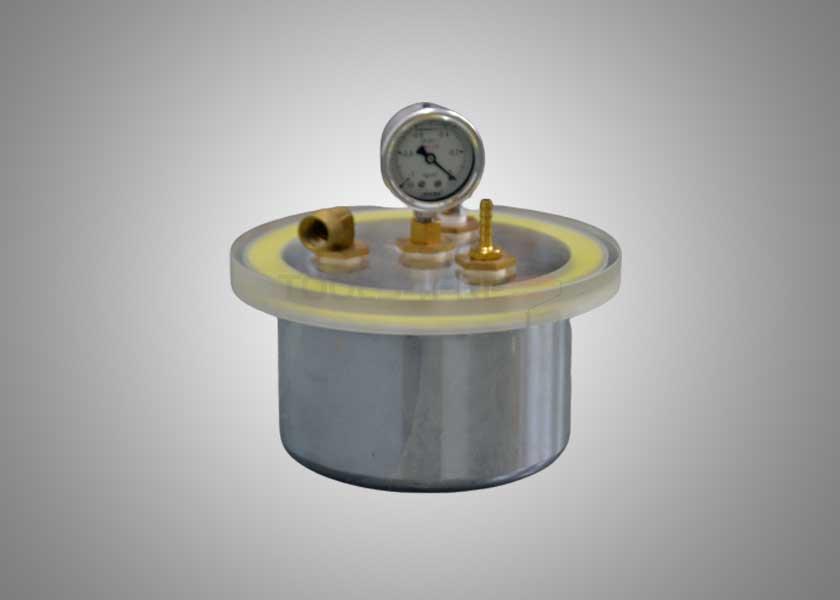

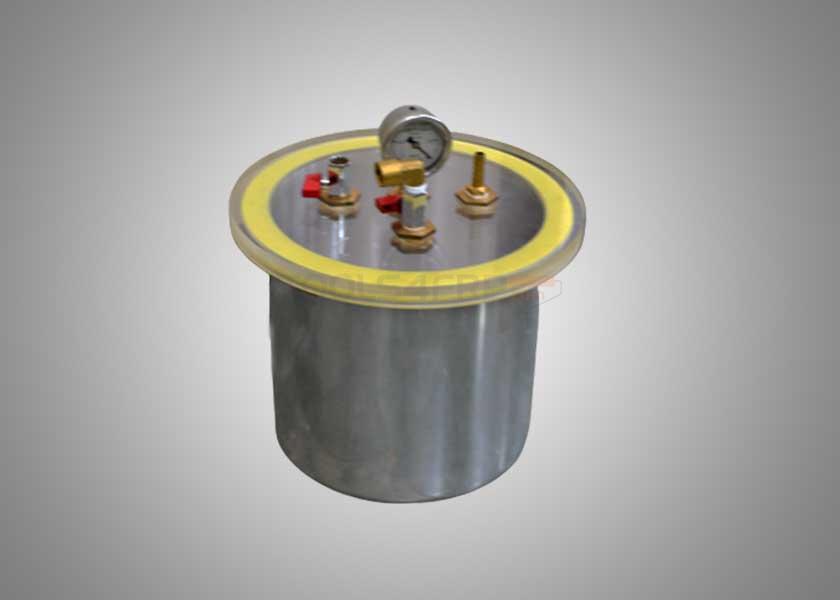

Aluminium vessel, transparent top lid with vaccume guage & leakproof brass rivit assembly for ports filment.
Product Code
Specifications
Capacity
Steel vessel, transparent top lid with vaccume guage & leakproof brass rivit assembly for ports filment.
Product Code
Specifications
Capacity
Product Code
Specifications
Capacity
Degassing Chamber
Degasification of dissolved gases from resin is necessary to achieve a perfect cast/cure. There are numerous methods for removing gases from liquids. However, using a degasing chamber is one of the most convenient and effective methods for epoxies, polyester gelcoats and silicones.
